Discover leak detection paint systems designed to support early visual identification of potential leakage at flange connections - including where acid-indicating paint is required under API RP 751 and MSS SP-160.
What Leak Detection Paint Is Used For

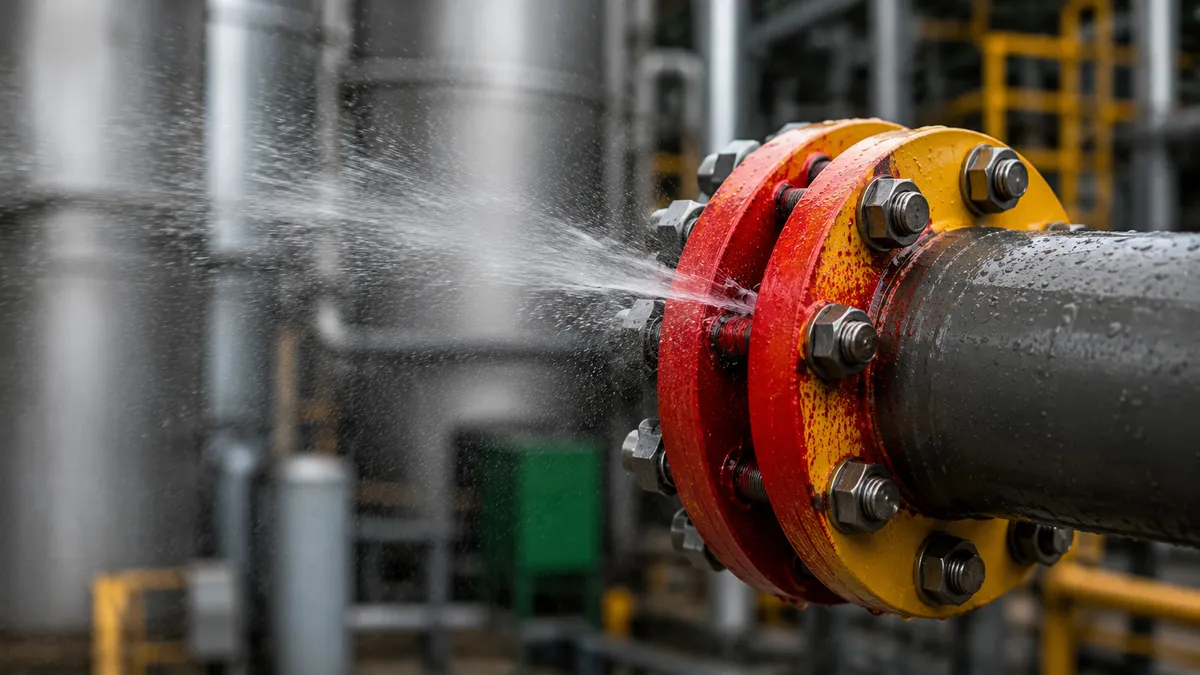

Leak detection paint is a visual monitoring coating used in industrial environments to help identify potential leakage at pipe flange connections and other critical points within piping systems.
It provides a visible colour change when exposed to process fluids, supporting early identification and precise flange leak localisation. Acid-detecting paint changes colour on contact with acids below pH 3, while base-detecting paint indicates alkaline leaks above pH 10, such as caustic soda or potash.
Why Visual Leak Detection Matters
In many industrial systems, flange leakage can begin as small or gradual seepage that may not be immediately visible during normal operation, nor produce a significant pressure drop for a flow meter or other instrumentation to detect.
Visual leak detection systems can support maintenance teams by providing:
A colour-change paint can reveal a leak at quantities too small to trigger area gas detectors or flow meters, and allows operators to identify the leak point from a safe distance before approaching.
Where Leak Detection Paint Is Recognised in Industry Standards
Visual indicating coatings are not only good practice - in some high-hazard services they are now an industry requirement.
API RP 751 - HF alkylation units
The American Petroleum Institute's Recommended Practice 751, Safe Operation of Hydrofluoric Acid Alkylation Units (5th Edition, 2021), is the recognised industry practice (RAGAGEP) for HF alkylation units and is widely used by refiners to support OSHA Process Safety Management compliance. The 5th Edition strengthened many provisions from recommendations ("should") to requirements ("shall"). Among them, acid-indicating paint shall be applied to the components identified in the document prior to the introduction of HF acid into the equipment. In service, operators are expected to monitor for colour change of HF-sensitive paint as part of routine surveillance, alongside other signs such as corrosion product build-up between flanges.
MSS SP-160 - HF alkylation valves
MSS SP-160-2024, Valves for Hydrogen Fluoride (HF) Alkylation Service, published by the Manufacturers Standardization Society, is the first industry product standard for new gate, globe, check, butterfly and plug valves in HF alkylation service. Among its quality and shipping-preparation requirements, valves are to be supplied with acid-indicating paint applied to defined areas of the valve, shown in figures within the standard. In other words, the visual indication layer now begins at the valve manufacturer - before the valve enters service - and is then maintained by the operating facility under API RP 751 and its mechanical integrity programme.
Chlor-alkali and chlorine service
Chlorine and moisture form an acidic condition at a leak point, which makes acid-detecting paint well suited to chlorine handling areas; alkaline-detecting paint addresses the caustic side of chlor-alkali operations. Many chlorine facilities and alkylation refineries worldwide use indicating coatings as a visual layer within their leak detection and inspection programmes, complementing atmospheric monitoring and emergency response guidance published by industry bodies such as The Chlorine Institute. Trade associations such as The Chlorine Institute publish guidance on leak detection practices generally and do not endorse specific commercial products.
Where Leak Detection Systems Are Used
Chemical leak indicator paints are commonly used in:
They are typically applied as part of planned maintenance or inspection programmes, during turnarounds, or on new installations before commissioning.
How Leak Detection Paint Supports Maintenance Programmes
Leak detection paint is not a replacement for mechanical inspection, instrumented detection or engineering controls. Instead, it is used as a supplementary visual layer within a broader leak detection and mitigation strategy.
It can be particularly useful in environments where:
Practical Specification and Inspection Considerations
The selected coating should match the process media and expected pH response. Surface preparation, coating coverage and access for visual inspection should also be considered before application. Once installed, the painted areas should be included within routine inspection programmes and recoated where condition, contamination or maintenance activity affects visibility or performance.
Integration With Broader Safety Practices
Leak detection systems are most effective when used alongside other industrial safety practices such as inspection schedules, maintenance planning, instrumented monitoring and secondary containment.
Where flange guards or safety shields are installed over coated components, the shield design should preserve visibility of the indicating coating - such as RAMCO® PPL and Clear Teflon (ETFE) VUE-GARD™ shields - so that the visual detection function defined in standards such as API RP 751 is not lost.
Frequently Asked Questions
Does leak detection paint replace gas detectors or mechanical inspection?
No. It is a supplementary visual indicator intended to support existing inspection, instrumented detection and engineering controls.
Can one paint detect both acid and alkaline leaks?
No. Acid-detecting and base-detecting paints use different indicator systems. The coating should be selected according to the process media and expected pH response.
Where is leak detection paint normally applied?
Typical locations include flange connections, valve areas and other critical points where small leaks may otherwise be difficult to identify. In regulated services, the applicable standard and site specification should define the required areas.
Can leak detection paint be used beneath a safety shield?
Yes, provided the shield allows the painted area to remain visible. Transparent or inspection-focused shield designs can preserve the visual indication while also helping manage a potential spray release.
Summary
Leak detection paint provides a practical visual method to support early identification of potential leakage in industrial piping systems, particularly at flange connections where inspection focus is often highest. In high-hazard services such as HF alkylation, acid-indicating paint has moved from good practice to a stated industry requirement - applied by the valve manufacturer under MSS SP-160 and by the operating facility under API RP 751 - making it an established element of modern leak detection and process safety programmes.
This article is provided for general information. Requirements under API RP 751, MSS SP-160 and other standards should always be verified against the current licensed editions and your site's own engineering specifications.
